EH36
Short Description:

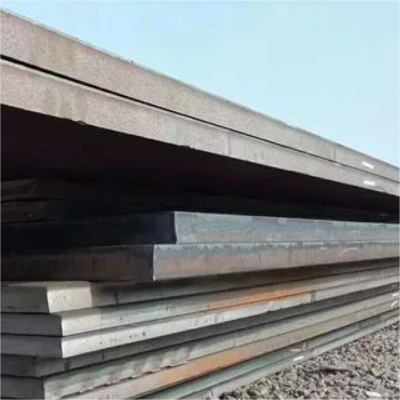

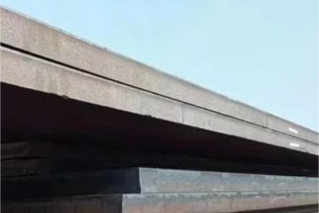

With its superior performance in low temperature and greater impact resistance, ABS EH36 plate is one of the premier shipbuilding steel products in the shipbuilding industry. Known for its strength and durability, EH36 shipbuilding-grade plate is the preferred choice for many types of heavy-duty vessels, such as barges and tankers, as well as a wide range of marine equipment applications. Yield/Tensile Strength Metric Imperial Tensile Strength, Ultimate 490 –...
Product Detail
FAQ
Product Tags
With its superior performance in low temperature and greater impact resistance, ABS EH36 plate is one of the premier shipbuilding steel products in the shipbuilding industry. Known for its strength and durability, EH36 shipbuilding-grade plate is the preferred choice for many types of heavy-duty vessels, such as barges and tankers, as well as a wide range of marine equipment applications.
Yield/Tensile Strength
|
Metric |
Imperial |
|
|
Tensile Strength, Ultimate |
490 – 621 MPa |
71 – 90 ksi |
|
Tensile Strength, Yield |
352 MPa |
51 ksi |
|
Elongation |
20 |
20 |
Material Chemistry
|
C |
FE |
MN |
P |
S |
|
0.420 – 0.50% |
98.51 – 98.98% |
0.60 – 0.90% |
≤ 0.040% |
≤ 0.050% |
