ASTM A53 Grade S-A

Short Description:

A53 PIPE SPECIFICATIONS S/A53 NPS 1/4″ – 30″ Schedules 10 through 160, STD, XH and XXH ASTM A53 pipe (also referred to as ASME SA53 pipe) is intended for mechanical and pressure applications and is also acceptable for ordinary uses in steam, water, gas and air lines. It is suitable for welding and for forming operations involving coiling, bending, and flanging, subject to certain qualifications. American Piping Products stocks a full range of A53 pipe (SA53 Pipe) in: Grade B NPS ¼” to 30” d...

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Port: Shenzhen

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

A53 PIPE SPECIFICATIONS

S/A53

NPS 1/4″ – 30″

Schedules 10 through 160, STD, XH and XXH

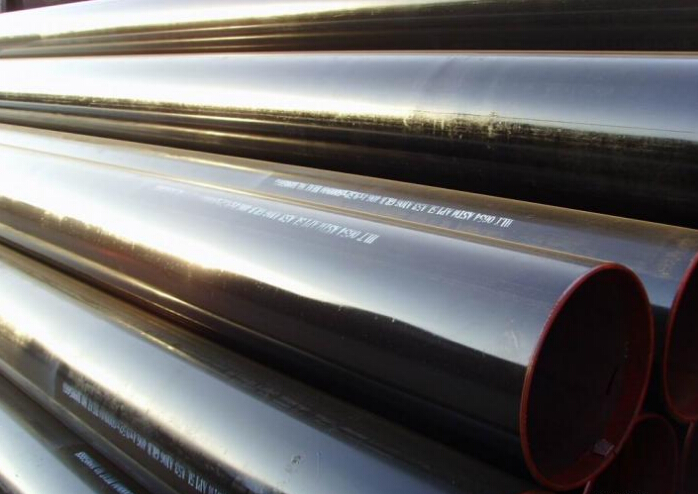

ASTM A53 pipe (also referred to as ASME SA53 pipe) is intended for mechanical and pressure applications and is also acceptable for ordinary uses in steam, water, gas and air lines. It is suitable for welding and for forming operations involving coiling, bending, and flanging, subject to certain qualifications.

American Piping Products stocks a full range of A53 pipe (SA53 Pipe) in:

Grade B
NPS ¼” to 30” diameter
Schedules 10 through 160, STD, XH and XXH

Scope

ASTM A53 pipe covers Seamless and Welded, Black and Hot-Dipped Galvanized nominal (average) wall pipe for coiling, bending, flanging and other special purposes and is suitable for welding. Continuous-Welded pipe is not intended for flanging. Purpose for which pipe is intended should be stated on order.

Materials and Manufacture

The steel for both seamless and welded pipe shall be made by one or more of the following processes: open-hearth, electric furnace, or basic-oxygen. The weld seam of electric-resistance welded pipe in Grade B shall be heat treated after welding.

Chemical Requirements

Download Chart

	Type S (seamless)		Type E		Type F
	Type S (seamless)		(electric- resistance welded)		(furnace- welded pipe)
	Grade A	Grade B	Grade A	Grade B	Grade A
Carbon max. %	0.25	0.30	0.25	0.30	0.3
Manganese %	0.95	1.2	0.95	1.2	1.2
Phosphorous, max. %	0.05	0.05	0.05	0.05	0.05
Sulfur, max. %	0.045	0.045	0.045	0.045	0.045
Copper, max.%	0.40	0.40	0.40	0.40	0.4
Nickel, max. %	0.40	0.40	0.40	0.40	0.4
Chromium, max. %	0.40	0.40	0.40	0.40	0.4
Molybdenum, max. %	0.15	0.15	0.15	0.15	0.15
Vanadium, max. %	0.08	0.08	0.08	0.08	0.08
