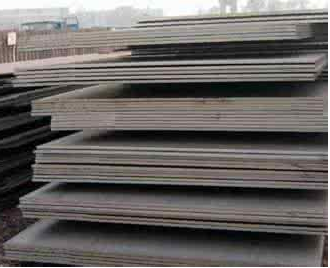

ASME SA537 Class 1 Steel Plates

Short Description:

Chemical Composition of ASME SA537 Class 1 Steel Plates Grade C Si Mn P S Cr Mo Ni Cu ≤ 40 mm > 40 mm SA537 Class 1 0.24 0.15/0.50 0.70/1.35 1.00/1.60 0.035 0.035 0.25 0.80 0.25 0.35 Mechanical Properties of ASME SA537 Class 1 Grade Yield (MPa) Tensile (MPa) Elongation Thickness A50mm A200mm SA537 Class 1 345 485/620 22% 18% ≤ 65 310 450/585 22% 18% > 65 ≤ 100

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Port: Shenzhen

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Chemical Composition of ASME SA537 Class 1 Steel Plates

Grade	C	Si	Mn		P	S	Cr	Mo	Ni	Cu
			≤ 40 mm	> 40 mm
SA537 Class 1	0.24	0.15/0.50	0.70/1.35	1.00/1.60	0.035	0.035	0.25	0.80	0.25	0.35

Mechanical Properties of ASME SA537 Class 1

Grade	Yield (MPa)	Tensile (MPa)	Elongation		Thickness
			A50mm	A200mm
SA537 Class 1	345	485/620	22%	18%	≤ 65
	310	450/585	22%	18%	> 65 ≤ 100
