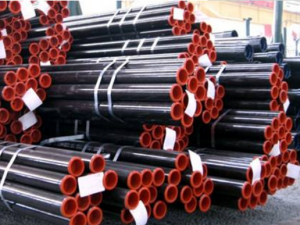

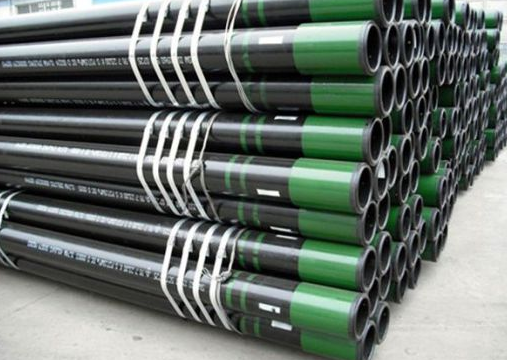

Api P110 N80 Oil Casing Pipe
Short Description:
Inspection Physical properties are checked and each length hydrostatically tested, normally to only 3,000 psi in the plain end (unthreaded) condition. The following are also checked: Dimensions Weights Straightness Lengths Part of this inspection is to drift all lengths. Despite all the American Petroleum Institute (API) specifications and testing, some tubing defects are still found after delivery; thus, some operators do further inspection. Inspection Method Size and surface inspection N...
Product Detail
FAQ
Product Tags
Inspection
Physical properties are checked and each length hydrostatically tested, normally to only 3,000 psi in the plain end (unthreaded) condition. The following are also checked:
- Dimensions
- Weights
- Straightness
- Lengths
Part of this inspection is to drift all lengths.
Despite all the American Petroleum Institute (API) specifications and testing, some tubing defects are still found after delivery; thus, some operators do further inspection.
Inspection Method
- Size and surface inspection
- NDT and pressure test and third party certication
- Hydrostatic
- Drifting test
- Physical and chemicail analysis
- Hardness and pressure test.
- Electromagnetic
- Magnetic particle
- Ultrasonic
Dimensions And Weight
| Size | Weight | Outside Diameter | Wall Thickness | End Finish | ||||||
| Grade | ||||||||||
| in | mm | in | mm | J55K55 | L80 | N80 | C90T95 | P110 | ||
| 4 1/2 | 9.50 | 4.500 | 114.3 | 0.205 | 5.21 | PS | – | – | – | – |
| 10.50 | 0.224 | 5.69 | PSB | – | – | – | – | |||
| 11.60 | 0.250 | 6.35 | PSLB | PLB | PLB | PLB | PLB | |||
| 13.50 | 0.290 | 7.37 | – | PLB | PLB | PLB | PLB | |||
| 15.10 | 0.337 | 9.56 | – | – | – | – | PLB | |||
| 5 | 11.50 | 5.00 | 127.00 | 0.220 | 5.59 | PS | – | – | – | – |
| 13.00 | 0.253 | 6.43 | PSLB | – | – | – | – | |||
| 15.00 | 0.296 | 7.52 | PSLB | PLB | PLB | PLBE | PLB | |||
| 18.00 | 0.362 | 9.19 | – | PLB | PLB | PLBE | PLB | |||
| 21.40 | 0.437 | 11.10 | – | PLB | PLB | PLB | PLB | |||
| 23.20 | 0.478 | 12.14 | – | PLB | ||||||
| 24.10 | 0.500 | 12.70 | – | PLB | ||||||
| 5 1/2 | 14.00 | 5.500 | 139.7 | 0.244 | 6.20 | PS | – | – | – | – |
| 15.50 | 0.275 | 6.98 | PSLB | – | – | – | – | |||
| 17.00 | 0.304 | 7.72 | PSLB | PLB | PLB | PLBE | PLB | |||
| 20.00 | 0.361 | 9.17 | – | PLB | PLB | PLBE | PLB | |||
| 23.00 | 0.415 | 10.54 | – | PLB | PLB | PLBE | PLB | |||
| 6 5/8 | 20.00 | 6.625 | 168.28 | 0.288 | 7.32 | PSLB | – | – | – | – |
| 24.00 | 0.352 | 8.94 | PSLB | PLB | PLB | PLBE | PLB | |||
| 28.00 | 0.417 | 10.59 | – | PLB | PLB | PLBE | PLB | |||
| 32.00 | 0.475 | 12.06 | – | PLB | PLB | PLBE | PLB | |||
| 7 | 17.00 | 7.00 | 177.80 | 0.231 | 5.87 | – | – | – | – | – |
| 20.00 | 0.272 | 6.91 | PS | – | – | – | – | |||
| 23.00 | 0.317 | 8.05 | PSLB | PLB | PLB | PLBE | – | |||
| 26.00 | 0.362 | 9.19 | PSLB | PLB | PLB | PLBE | PLB | |||
| 29.00 | 0.408 | 10.36 | – | PLB | PLB | PLBE | PLB | |||
| 32.00 | 0.453 | 11.51 | – | PLB | PLB | PLBE | PLB | |||
| 35.00 | 0.498 | 12.65 | – | PLB | PLB | PLBE | PLB | |||
| 38.00 | 0.540 | 13.72 | – | PLB | PLB | PLBE | PLB | |||
| 7 5/8 | 24.00 | 7.625 | 193.68 | 0.300 | 7.62 | – | – | – | – | – |
| 26.40 | 0.328 | 8.33 | PSLB | PLB | PLB | PLBE | PLB | |||
| 29.70 | 0.375 | 9.52 | – | PLB | PLB | PLBE | PLB | |||
| 33.70 | 0.430 | 10.92 | – | PLB | PLB | PLBE | PLB | |||
| 39.00 | 0.500 | 12.70 | – | PLB | PLB | PLBE | PLB | |||
| 42.80 | 0.562 | 14.27 | – | PLB | PLB | PLB | PLB | |||
| 45.30 | 0.595 | 15.11 | – | PLB | PLB | PLB | PLB | |||
| 47.10 | 0.625 | 15.88 | – | PLB | PLB | PLB | PLB | |||
| 8 5/8 | 24.00 | 8.625 | 219.08 | 0.264 | 6.71 | PS | – | – | – | – |
| 28.00 | 0.304 | 7.72 | – | – | – | – | – | |||
| 32.00 | 0.352 | 8.94 | PSLB | – | – | – | – | |||
| 36.00 | 0.400 | 10.16 | PSLB | PLB | PLB | PLBE | PLB | |||
| 40.00 | 0.450 | 11.43 | – | PLB | PLB | PLBE | PLB | |||
| 44.00 | 0.500 | 12.70 | – | PLB | PLB | PLBE | PLB | |||
| 49.00 | 0.557 | 14.15 | – | PLB | PLB | PLBE | PLB | |||
| 9 5/8 | 32.30 | 9.625 | 244.48 | 0.312 | 7.92 | – | – | – | – | – |
| 36.00 | 0.352 | 8.94 | PSLB | – | – | – | – | |||
| 40.00 | 0.395 | 10.03 | PSLB | PLB | PLB | PLBE | – | |||
| 43.50 | 0.435 | 11.05 | – | PLB | PLB | PLBE | PLB | |||
| 47.00 | 0.472 | 11.99 | – | PLB | PLB | PLBE | PLB | |||
| 53.50 | 0.545 | 13.84 | – | PLB | PLB | PLBE | PLB | |||
| 58.40 | 0.595 | 15.11 | – | PLB | PLB | PLB | PLB | |||
| 10 3/4 | 32.75 | 10.75 | 273.05 | 0.279 | 7.09 | – | – | – | – | – |
| 40.50 | 0.350 | 8.89 | PSB | – | – | – | – | |||
| 15.50 | 0.400 | 10.16 | PSB | – | – | – | – | |||
| 51.00 | 0.450 | 11.43 | PSB | PSB | PSB | PSBE | PSB | |||
| 55.50 | 0.495 | 12.57 | – | PSB | PSB | PSBE | PSB | |||
| 60.70 | 0.545 | 13.84 | – | – | – | PSBE | PSB | |||
| 65.70 | 0.595 | 15.11 | – | – | – | PSB | PSB | |||
| 13 3/8 | 48.00 | 13.375 | 339.73 | 0.330 | 8.38 | – | – | – | – | – |
| 54.50 | 0.380 | 9.65 | PSB | – | – | – | – | |||
| 61.00 | 0.430 | 10.92 | PSB | – | – | – | – | |||
| 68.00 | 0.480 | 12.19 | PSB | PSB | PSB | PSB | PSB | |||
| 72.00 | 0.514 | 13.06 | – | PSB | PSB | PSB | PSB | |||
| 16 | 65.00 | 16 | 406.40 | 0.375 | 9.53 | – | – | – | – | – |
| 75.00 | 0.438 | 11.13 | PSB | – | – | – | – | |||
| 84.00 | 0.495 | 12.57 | PSB | – | – | – | – | |||
| 109.00 | 0.656 | 16.66 | P | P | P | – | P | |||
| 18 5/8 | 87.50 | 18.625 | 473.08 | 0.435 | 11.05 | PSB | – | – | – | – |
| 20 | 94.00 | 20 | 508.00 | 0.438 | 11.13 | PSLB | – | – | – | – |
| 106.50 | 0.500 | 12.70 | PSLB | – | – | – | – | |||
| 133.00 | 0.635 | 16.13 | PSLB | – | – | – | ||||
